 插件 |
|
|

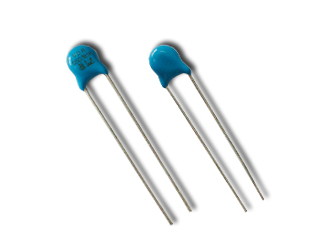

| 5D系列 |
| Varistor Voltage: 18~560V
Withstanding Surge Current: 100~800A
Model Size: 5mm
Fast responding to transient over-voltage<25ns
|
|
| |
| 产品详细说明 : |
| Part Number |
Maximum allowable voltage |
Varistor voltage |
Clamping voltage |
Maximum peak current |
Maximum Energy current |
Rated power |
Typical capacitance（Reference） |
| Φ5.0mm |
(Max.) |
(8/20μs) |
(10/1000μs) |
| Standard |
high surge |
AC(V) |
DC (V) |
V1.0mA |
VC |
IP |
Standard |
High surge |
Standard |
High surge |
（W） |
@1KHz(pf) |
| (V) |
(V) |
(A) |
（A） |
（A） |
（J） |
（J） |
| 05D180L |
J |
11 |
14 |
18(15-21) |
40 |
1
|
100
|
250
|
0.4 |
0.6 |
0.01
|
1400 |
| 05D220K |
J |
14 |
18 |
22(20-24) |
48 |
0.5 |
0.7 |
1150 |
| 05D270K |
J |
17 |
22 |
27(24-30) |
60 |
0.6 |
0.9 |
930 |
| 05D330K |
J |
20 |
26 |
33(30-36) |
73 |
0.8 |
1.1 |
760 |
| 05D390K |
J |
25 |
31 |
39(35-43) |
80 |
0.9 |
1.2 |
640 |
| 05D470K |
J |
30 |
38 |
47(42-52) |
104 |
1.1 |
1.5 |
530 |
| 05D560K |
J |
35 |
45 |
56(50-62) |
123 |
1.3 |
1.8 |
450 |
| 05D680K |
J |
40 |
56 |
68(61-75) |
150 |
1.6 |
2.2 |
370 |
| 05D820K |
J |
50 |
65 |
82(74-90) |
145 |
5
|
400
|
800
|
2.5 |
4 |
0.1
|
300 |
| 05D101K |
J |
60 |
85 |
100(90-110) |
175 |
3 |
4.1 |
250 |
| 05D121K |
J |
75 |
100 |
120(108-132) |
210 |
4 |
4.9 |
210 |
| 05D151K |
J |
95 |
125 |
150(135-165) |
260 |
4.8 |
6.5 |
165 |
| 05D181K |
J |
115 |
150 |
180(162-198) |
320 |
5.9 |
7.5 |
140 |
| 05D201K |
J |
130 |
170 |
200(185-225) |
355 |
6.5 |
8.5 |
125 |
| 05D221K |
J |
140 |
180 |
220(198-242) |
380 |
7 |
9 |
110 |
| 05D241K |
J |
150 |
200 |
240(216-264) |
415 |
8 |
10.5 |
100 |
| 05D271K |
J |
175 |
225 |
270(243-297) |
475 |
8.5 |
11 |
95 |
| 05D304K |
J |
190 |
250 |
300(270-330) |
520 |
9 |
12 |
85 |
| 05D331K |
J |
210 |
275 |
330(297-363) |
570 |
9.5 |
13 |
75 |
| 05D361K |
J |
230 |
300 |
360(324-396) |
620 |
10 |
16 |
70 |
| 05D391K |
J |
250 |
320 |
390(351-429) |
675 |
12 |
17 |
65 |
| 05D431K |
J |
275 |
350 |
430(387-473) |
745 |
13 |
20 |
60 |
| 05D471K |
J |
300 |
385 |
470(423-517) |
810 |
15 |
21 |
55 |
| 05D511K |
J |
320 |
415 |
510(459-561) |
845 |
16 |
22.5 |
50 |
| 05D561K |
J |
350 |
460 |
560(504-616) |
920 |
16 |
24 |
45 |
|
|
|
|
